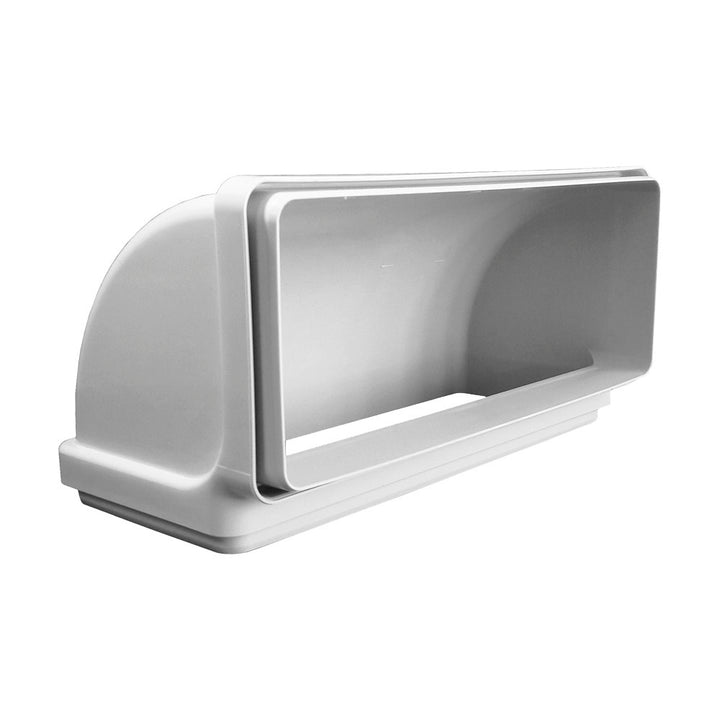

...joins two lengths of 100mm x 60mm flat rectangular ducting at a right angle in the vertical plane — turning the duct run upward or downward at 90° where it needs to change height, drop into a cabinet void, rise through a ceiling, or transition between different levels within a wall or ceiling structure. Self-sealing push fit.
This is the most important distinction in the flat ducting range and the most common source of wrong purchases. A vertical elbow changes the height of the duct run — it turns the duct upward or downward. A horizontal elbow keeps the duct at the same height and turns it left or right. If your ducting run travels along the top of kitchen cabinets and needs to drop down into a cabinet void at the end, or rise up through a ceiling at the end of the run, this vertical elbow is the correct fitting. If the run needs to turn a corner left or right at the same height — along the cabinet top or ceiling line — use the 100mm x 60mm 90° Horizontal Elbow instead. Getting this right before ordering saves a return trip.

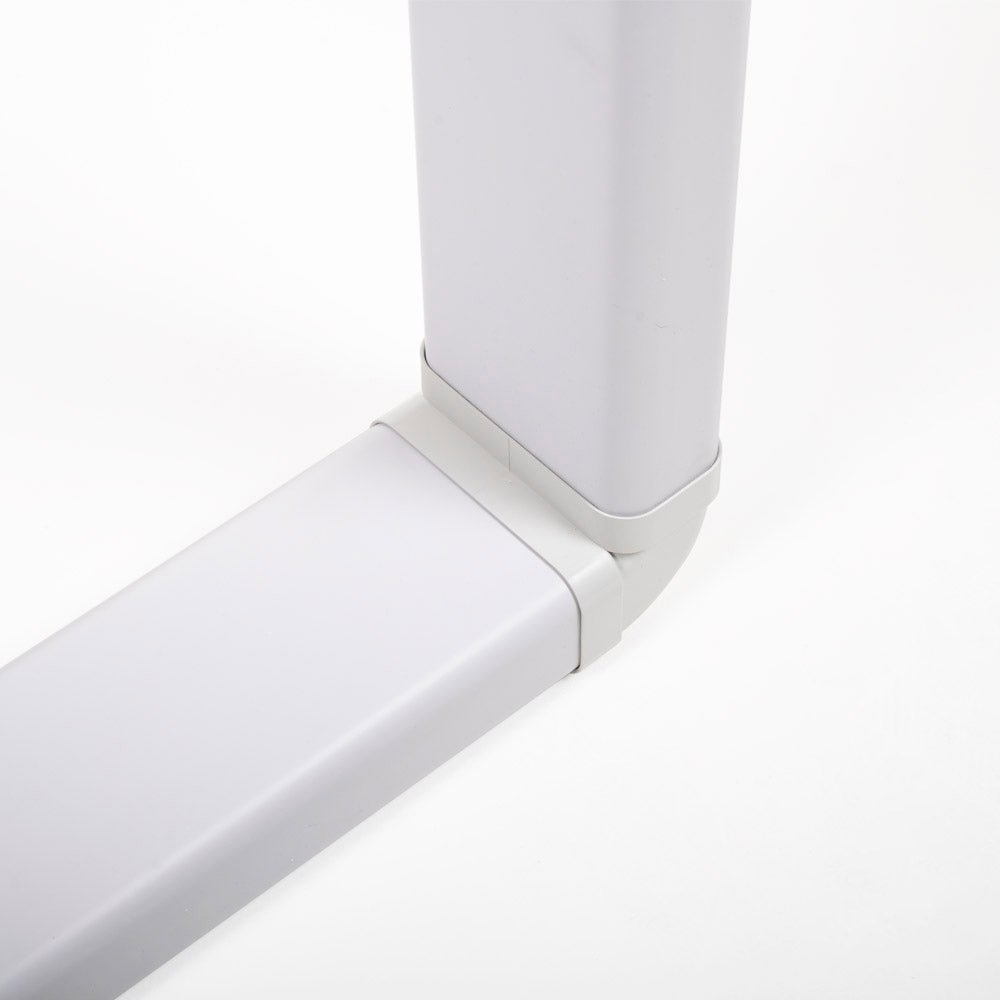

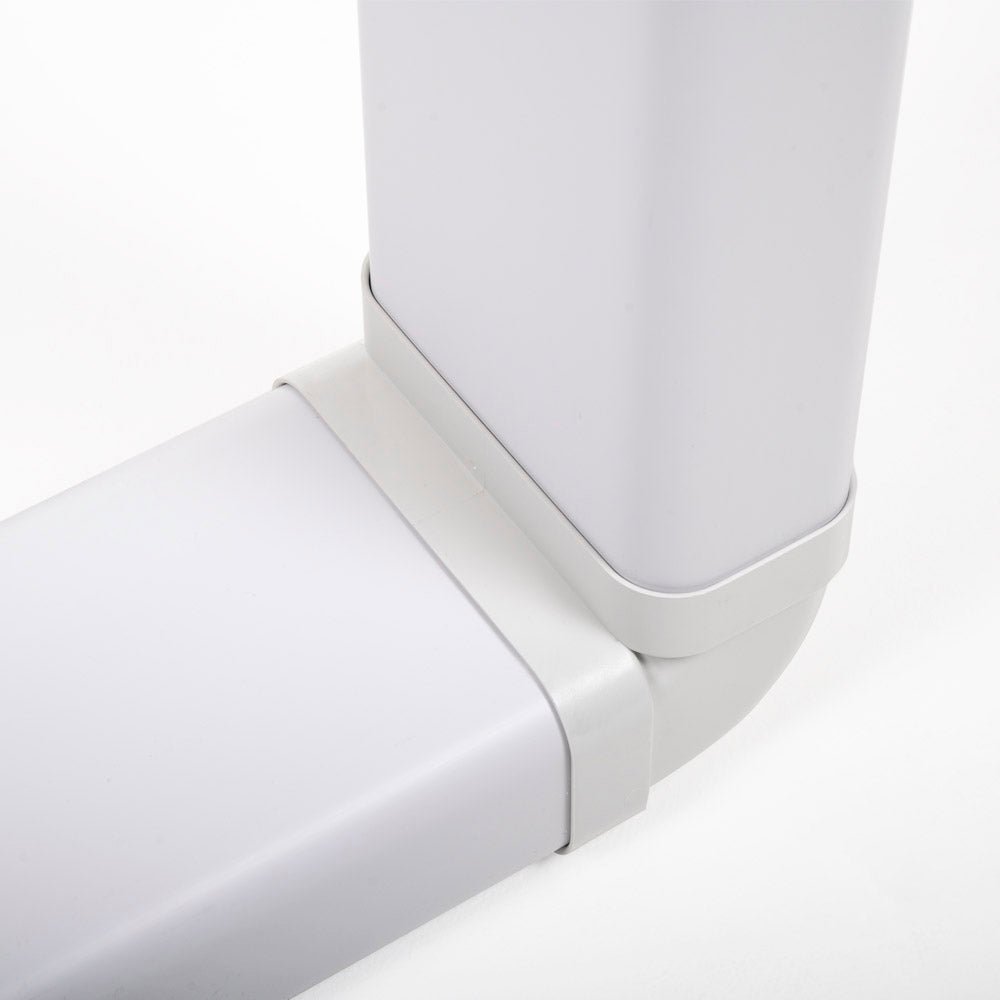

The vertical elbow appears most commonly in two places in a kitchen ducting run. First, at the start of the run — where a flat duct coming horizontally out of a round-to-flat adaptor needs to turn downward to route inside a wall cavity or upward to exit through the ceiling above the cabinets. Second, at the end of the run — where a flat duct travelling along the top of cabinets needs to turn downward to exit through the wall at a lower height, or upward to enter a ceiling void before connecting to an external wall vent. In both cases the vertical elbow makes the direction change cleanly in a single rigid fitting.
Both ends are push fit and self-sealing against 100mm x 60mm flat ducting pipe and matching fittings — no sealant, or fixings needed at any rigid-to-rigid connection. The smooth interior bore through the bend minimises turbulence, maintaining extraction efficiency through the direction change.
This vertical elbow works seamlessly with every other component in Luxair's 100mm x 60mm flat ducting range — 1-metre flat duct pipes, 90° horizontal elbows, inline connector collars, ducting clips, and round-to-flat transition adaptors.
All the components you need to complete your ducting run are available as related products at the bottom of this page — add everything to your basket in one visit without having to search for each part separately.
100mm x 60mm flat ducting is the equivalent airflow cross-section to 100mm round ducting and is correct for cooker hood motors rated below 450 m³/hr. For higher-rated motors use larger ducting throughout:
Flat Ducting 90° Vertical Elbow — Turns Upward or Downward Joins two 100mm x 60mm flat duct lengths at a right angle in the vertical plane. For direction changes that raise or lower the duct run height.
Self-Sealing Push Fit on Both Ends Airtight connection without ducting tape. Tape only required when connecting to flexible hose.
Smooth Interior Bore Smooth internal profile minimises airflow turbulence through the bend.
Vertical Orientation Duct exits upward or downward at 90°. For left or right turns at the same height use the 100mm x 60mm Horizontal Elbow instead.
Fire Resistant Polymer Construction Solid rigid fire-resistant polymer — safe for permanent installation in wall voids, ceiling spaces, and cabinet runs.
Mould Resistant Moisture and mould resistant — suitable for kitchen ventilation environments.
Recyclable Material Made from recyclable polymer — suitable for responsible disposal at end of life.
Compatible With Full Luxair 100mm x 60mm Flat Range Works with all Luxair 100mm x 60mm flat pipes, horizontal elbows, connector collars, clips, and adaptor pieces.
Suitable For Hoods Rated Below 450 m³/hr Equivalent airflow to 100mm round ducting. Higher-rated motors require larger ducting throughout the run.
Next-Day UK Delivery Available In stock and available for express overnight delivery across the UK.
