125mm (5") Round to Flat 150mm x 70mm Vertical 90° Bend
Fire resistant - Mould resistant - Recyclable
In stock
Backordered, shipping soon
Regular price£9.95
Total for selected quantity
/
Ex VAT: £8.29
Prices Shown Are Including VAT.
*
£9.95

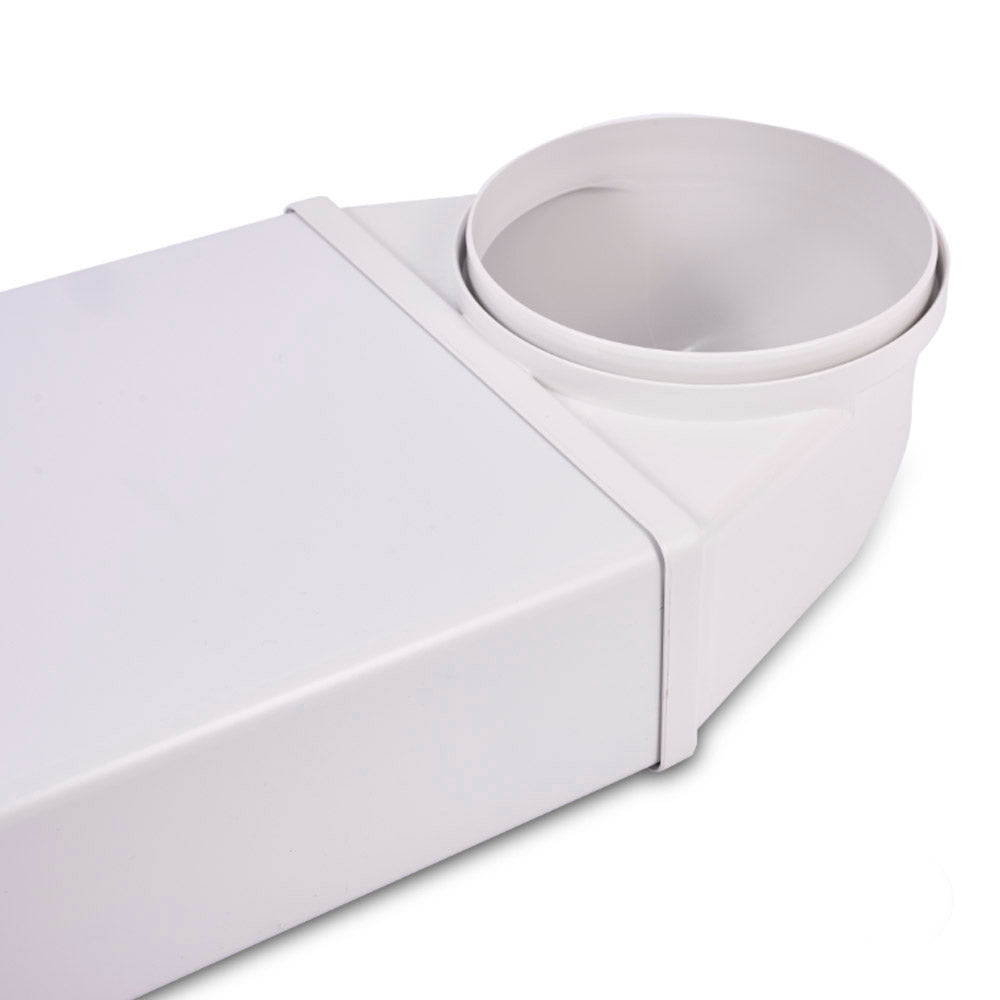

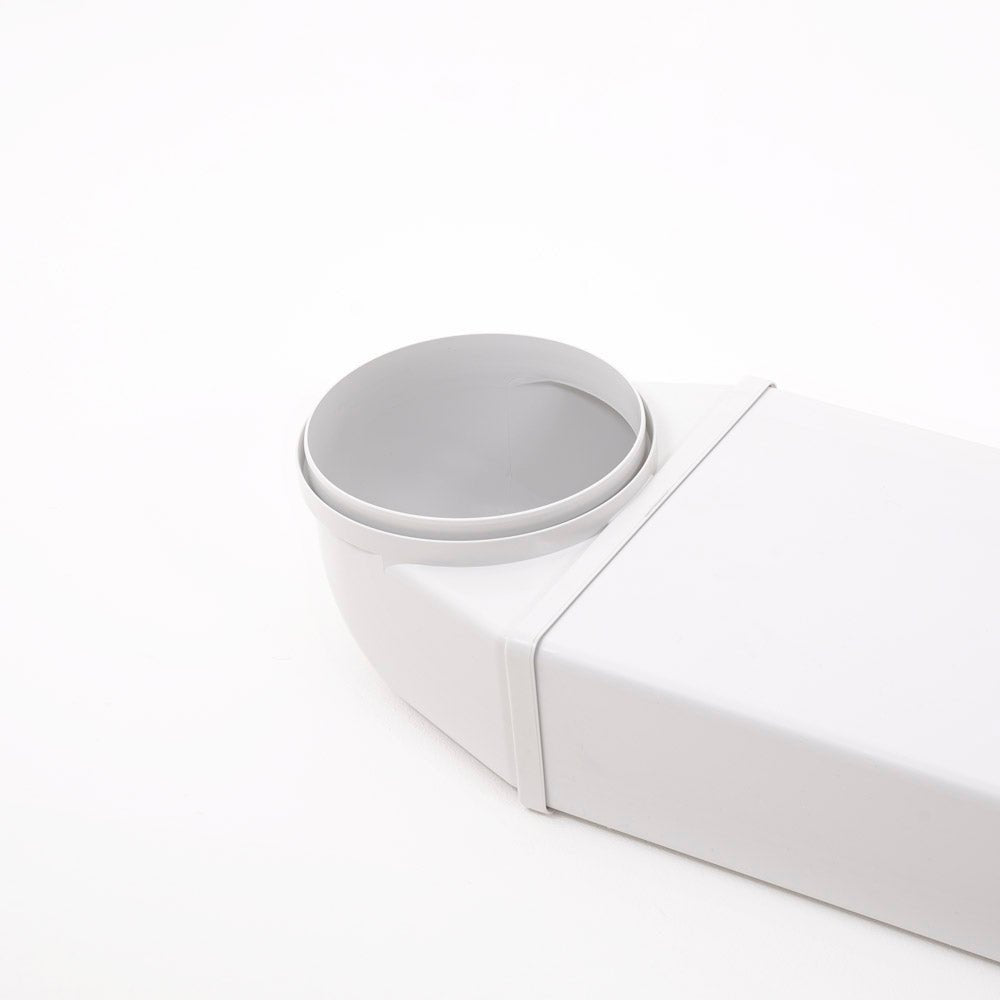

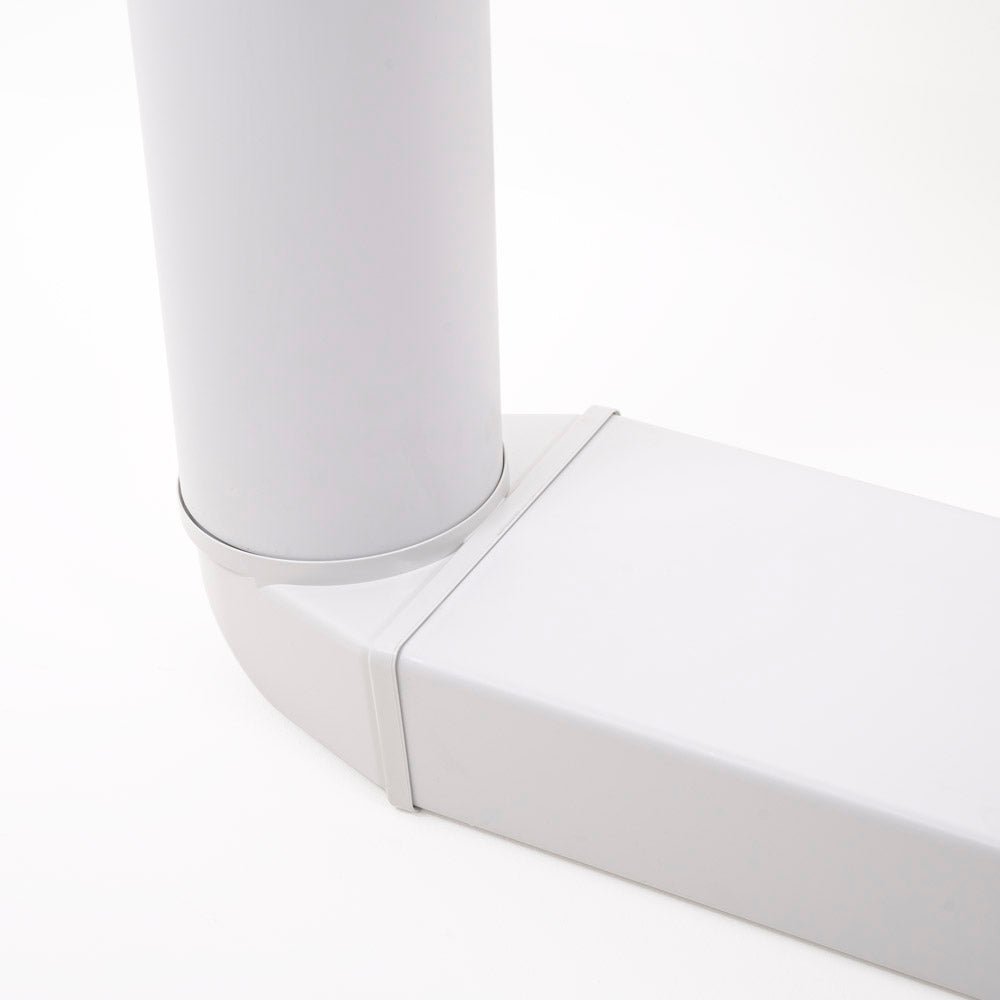

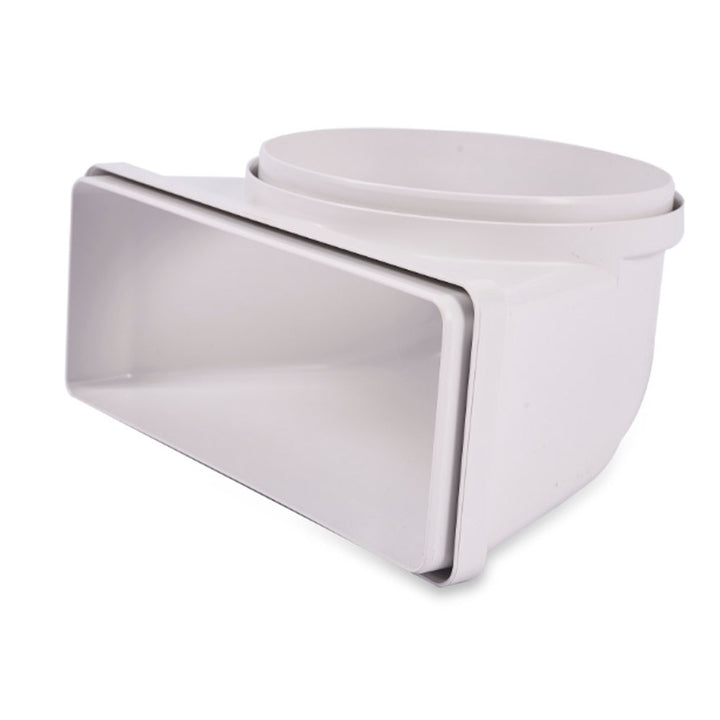

125mm Round to 150mm × 70mm Flat Ducting — Vertical 90° Bend
This connector joins a 125mm round ducting pipe (or 125mm flexible aluminium tube) to a 150mm × 70mm flat rectangular ducting pipe at a right angle, routing the duct through a vertical 90° corner. It is part of the Luxair 5" push-fit airtight ducting system.
Where This Component Is Used
Use this bend where your cooker hood ducting needs to change direction at a vertical right angle — for example where the duct run leaves the hood body and turns to run horizontally along a wall or into a ceiling void, or where a run needs to transition between round and flat ducting formats at a corner.
The 5" Push-Fit System
This component is part of the Luxair 125mm (5") push-fit airtight ducting range. The system combines 150mm × 70mm flat rectangular ducting and 125mm round ducting — both formats carry equivalent airflow rates and are fully interchangeable within the system. All components connect by push-fit for an airtight seal without adhesive or clips. The full range includes straight sections, bends, adapters, elbows, and wall outlets to complete any standard cooker hood ducting installation.
Ducting Size Guide
Selecting the correct ducting diameter for your motor output ensures maximum extraction performance:
Below 450m³/hr → 100mm (4") ducting
450–750m³/hr → 125mm (5") or 150mm (6") ducting
750–2,000m³/hr → 150mm (6") or 200mm (8") ducting
✓ 125mm round to 150mm × 70mm flat — vertical 90° bend — check product title to confirm exact component before ordering

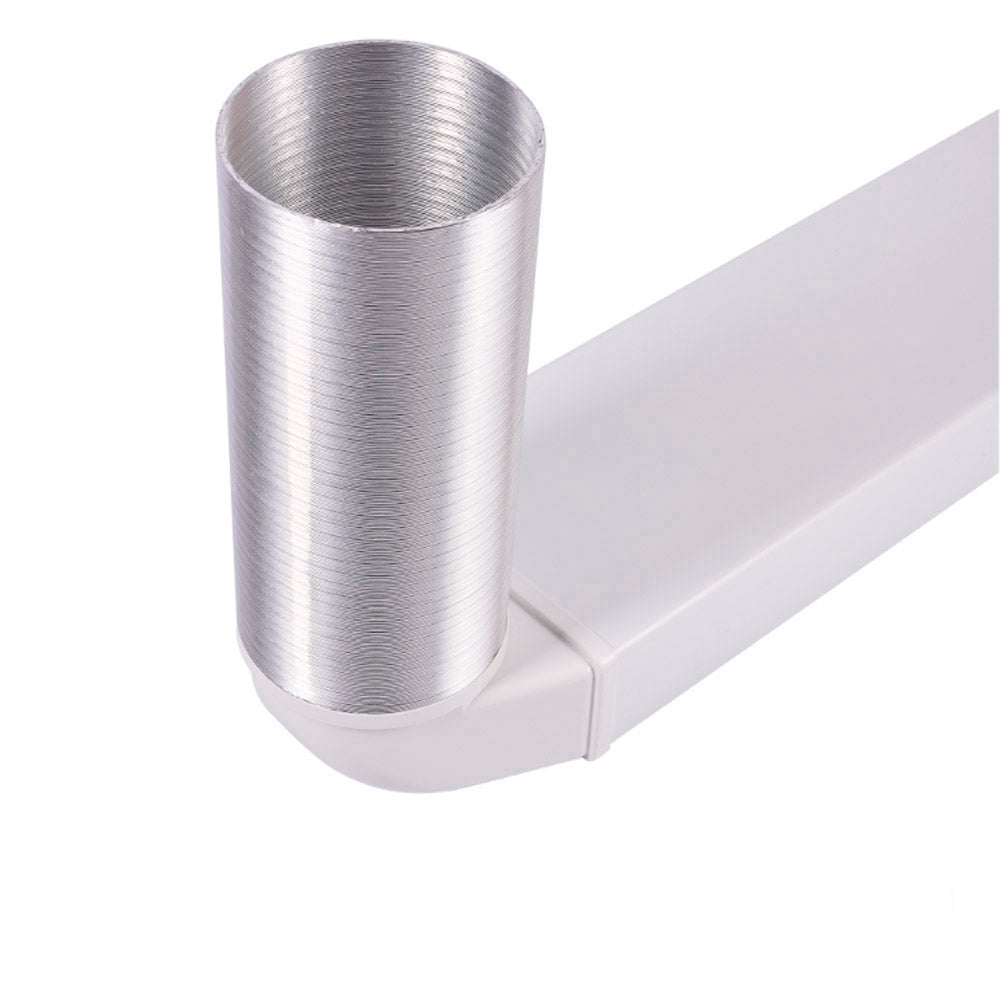

✓ Connects 125mm round ducting or 125mm flexible aluminium tube to 150mm × 70mm flat rectangular ducting
✓ 90° vertical bend — routes ducting through a right-angle corner smoothly for consistent airflow
✓ Part of the Luxair 5" (125mm) push-fit airtight ducting system — no adhesive or clips required; push-fit connection throughout
✓ Compatible with both 150mm × 70mm flat and 125mm round components — both carry equivalent airflow rates within the system
✓ Suitable for standard cooker hood ducting installations — wall, ceiling, and cavity duct runs
✓ Fast UK despatch — express overnight service available
View All Other ducting sizes and vents collections
