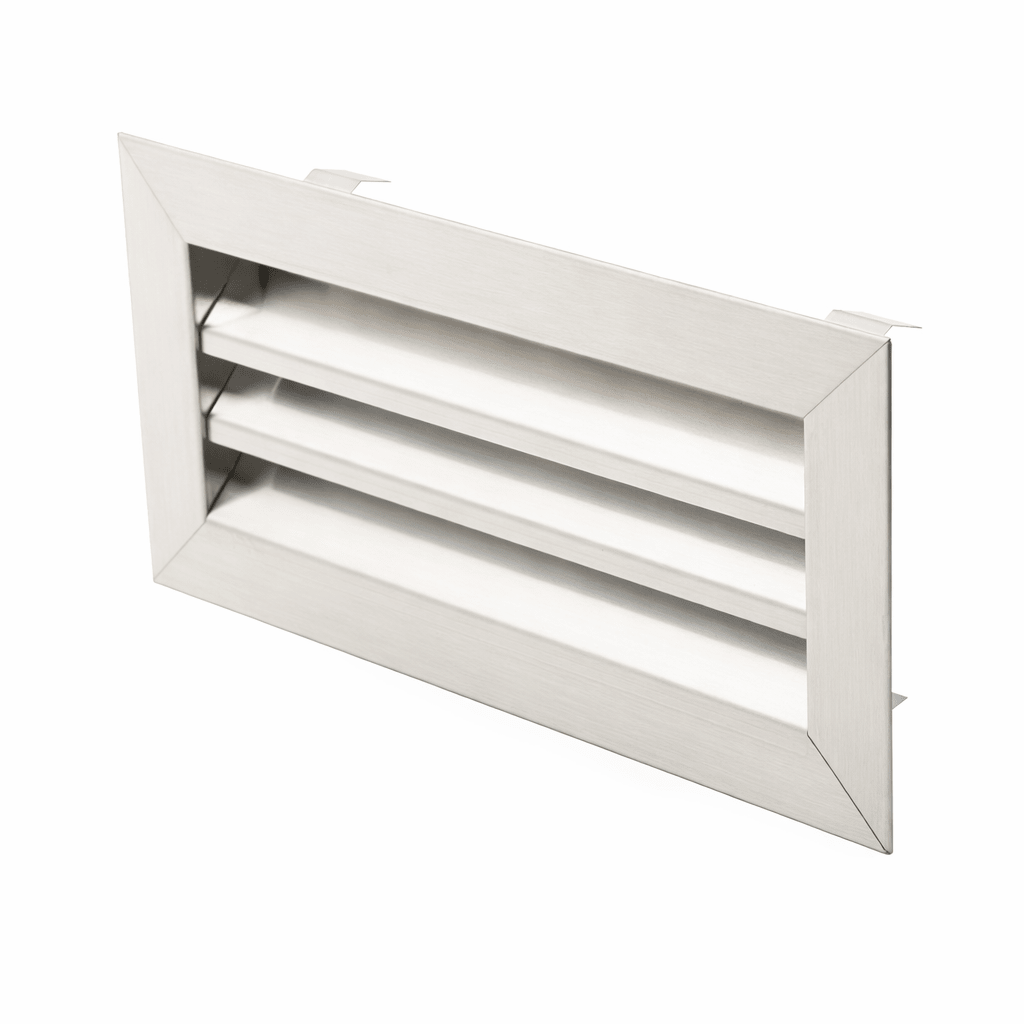

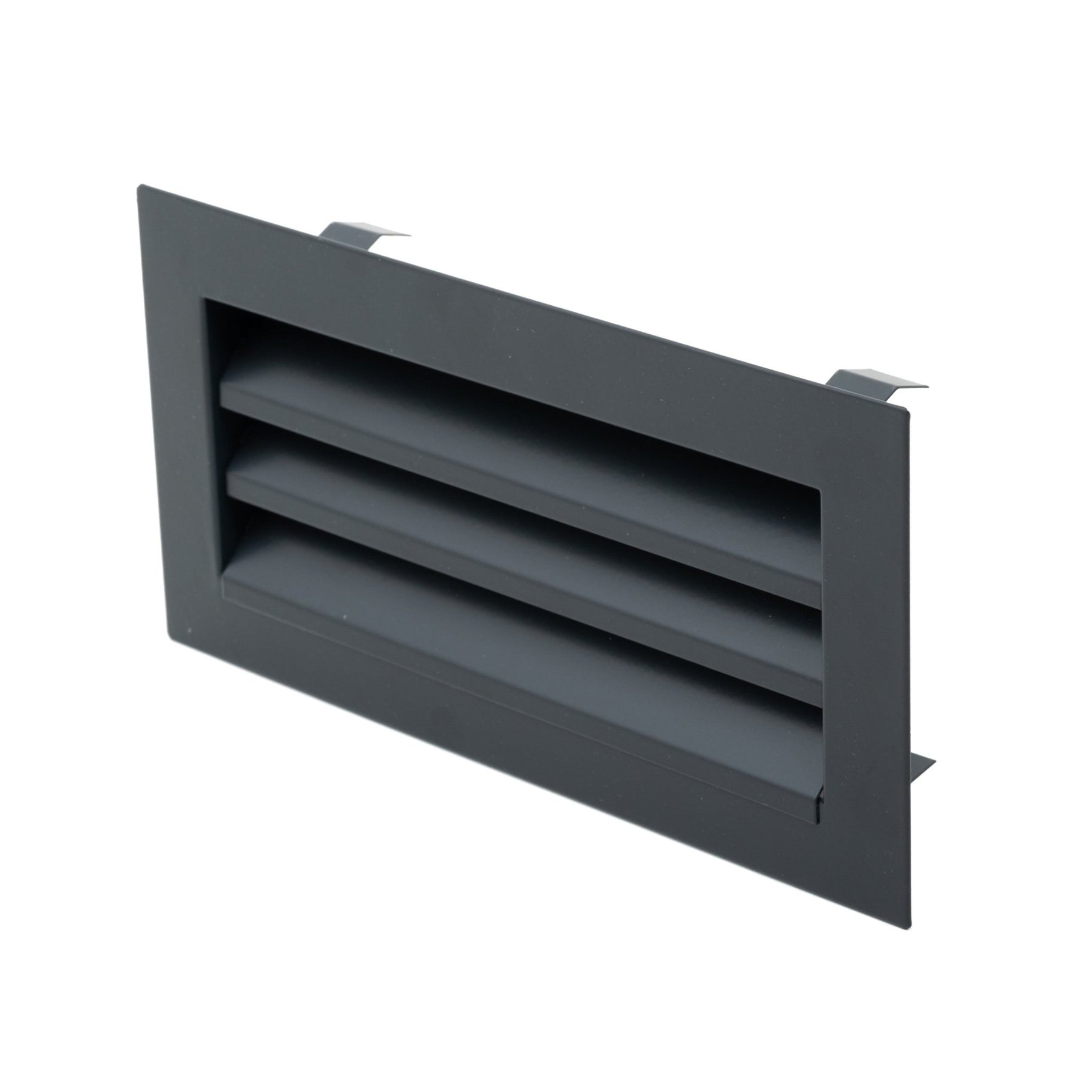

Handmade 220mm × 90mm Plinth or Wall Grille Vent — Push-Clip, No Drilling

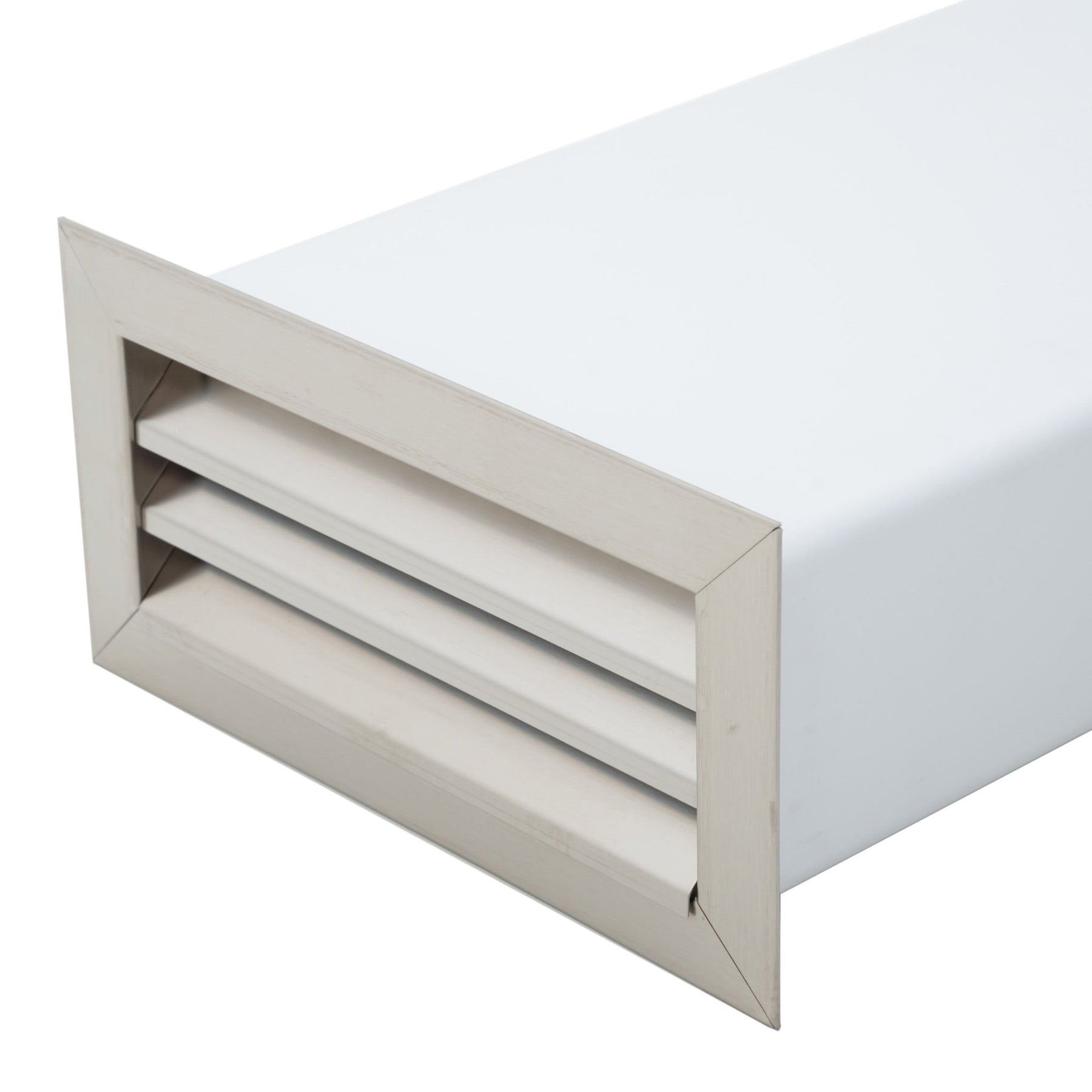

This handmade stainless steel grille vent is designed specifically for 220mm × 90mm flat channel ducting and fits using a push-clip system — no screws and no drilling required. It is suitable for installation as a plinth grille at the base of kitchen cabinetry, or as a wall vent on interior or exterior surfaces. Available in multiple colours — check the product title for the colour option you are ordering. This is the only vent in the Luxair range designed for 220mm × 90mm flat ducting.
Where This Vent Is Used

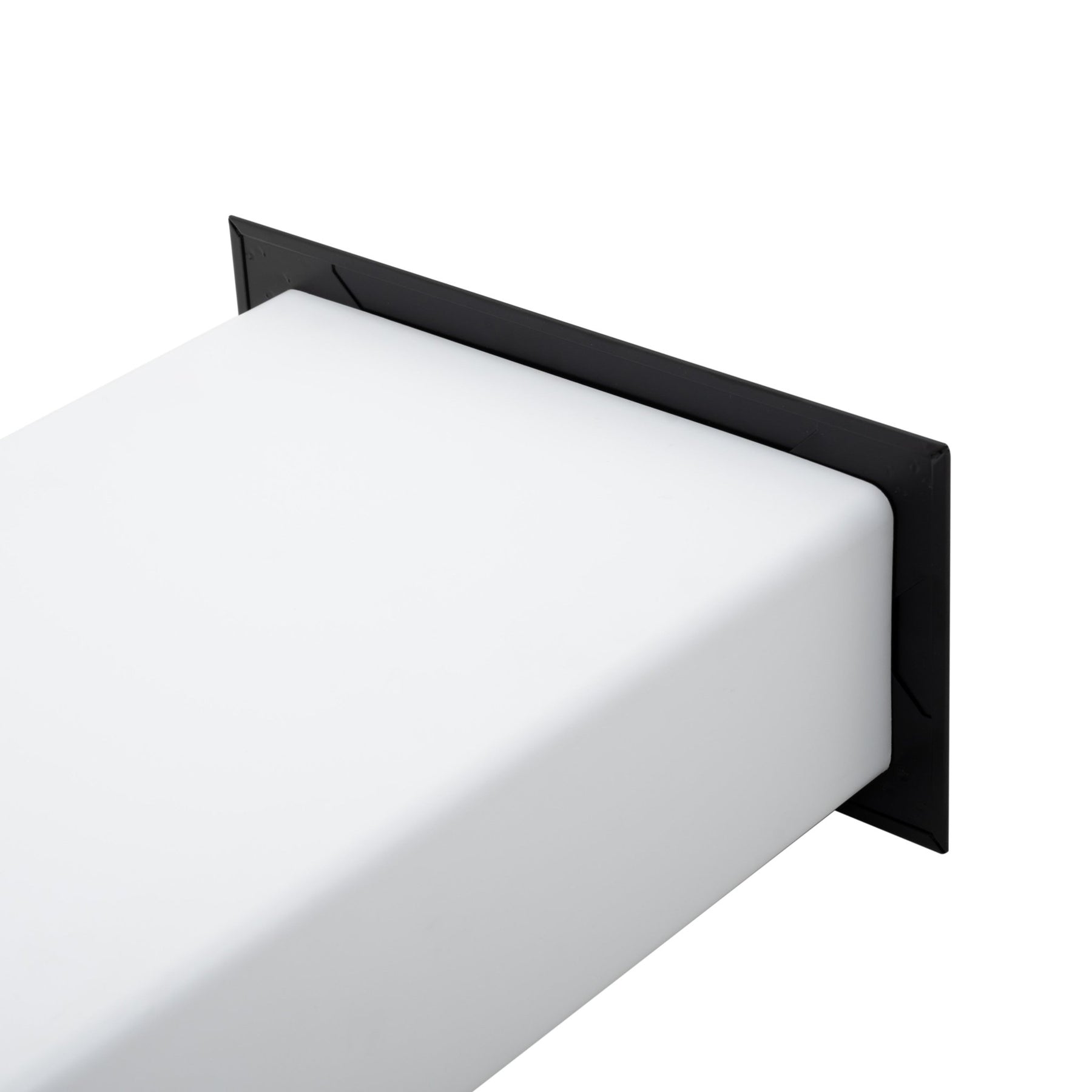

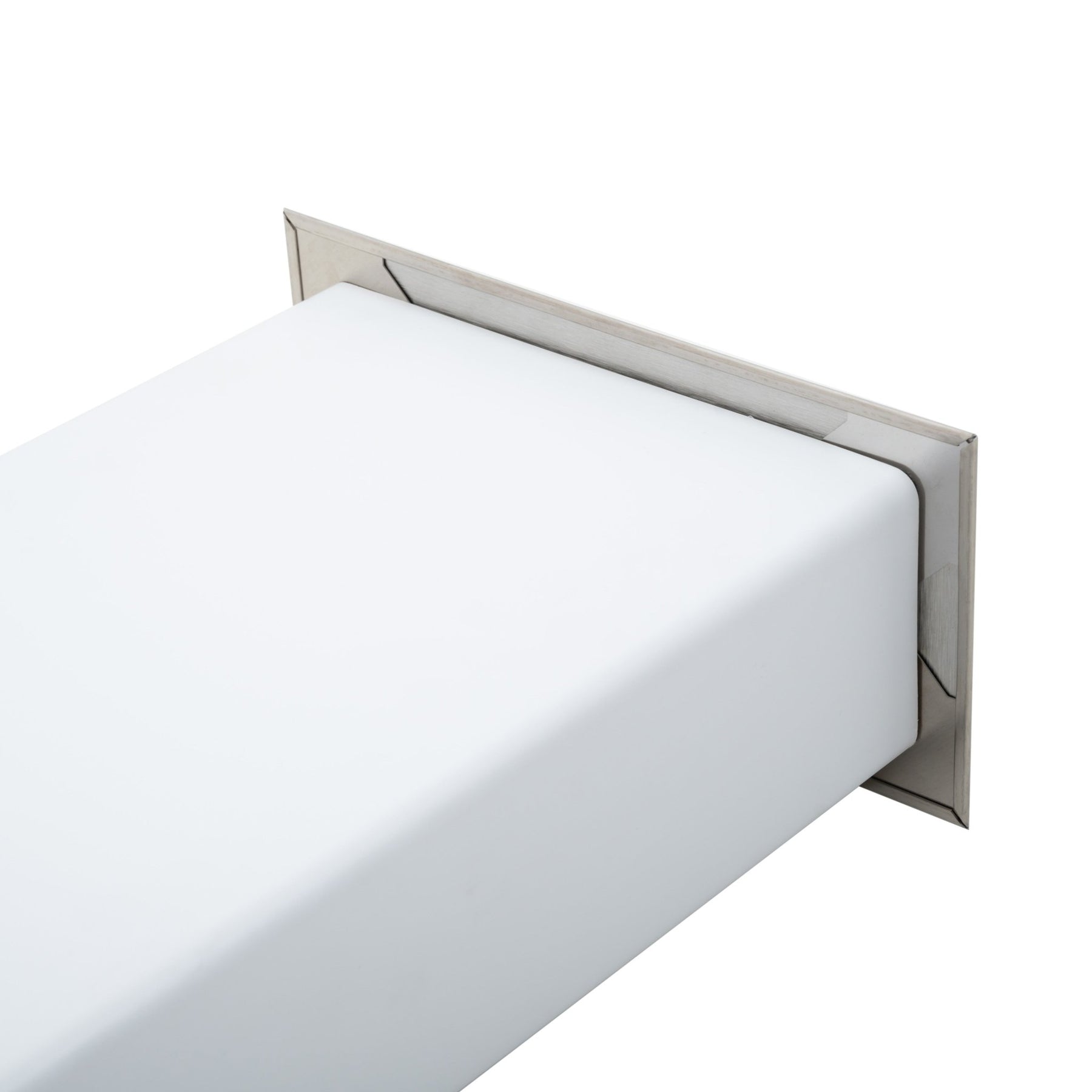

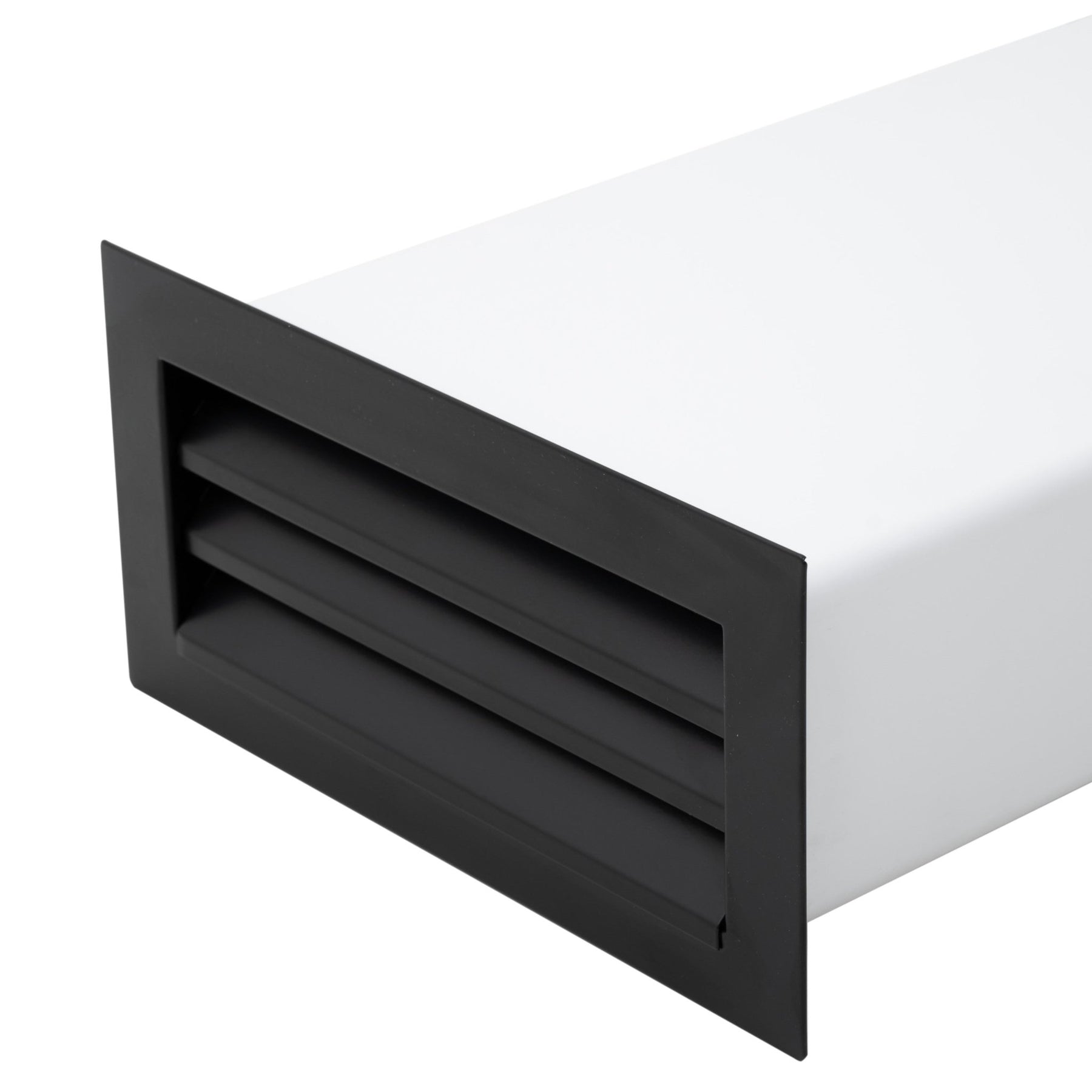

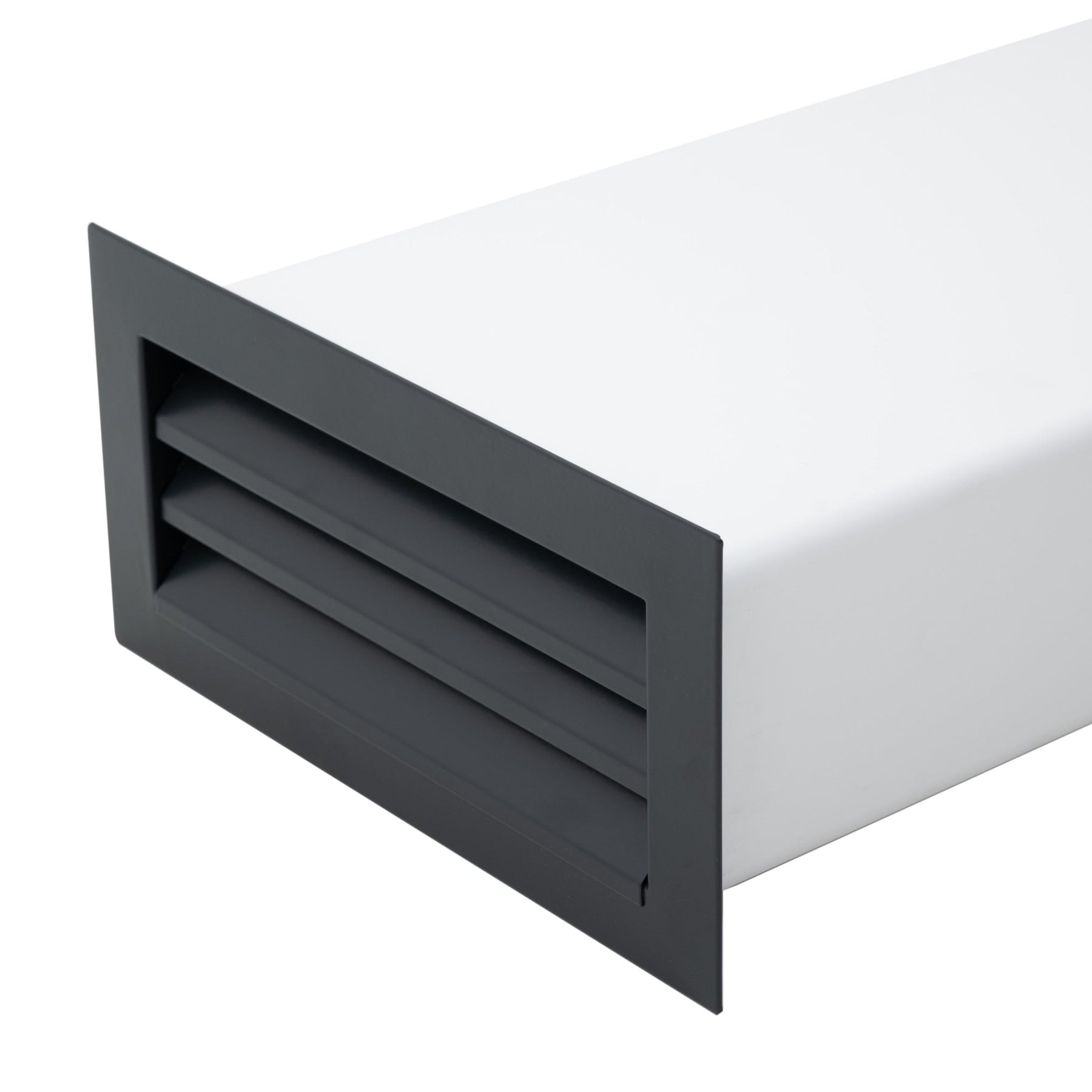

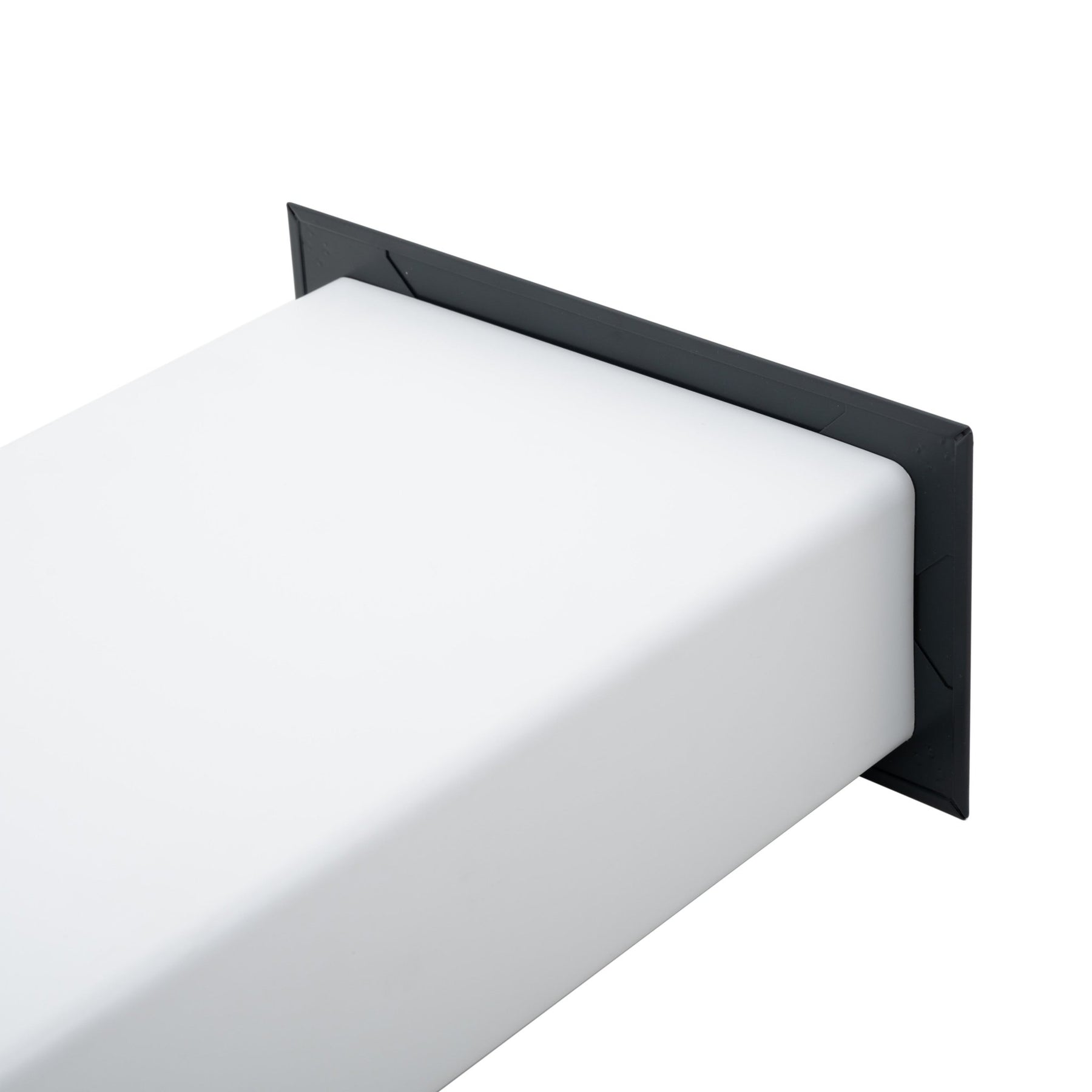

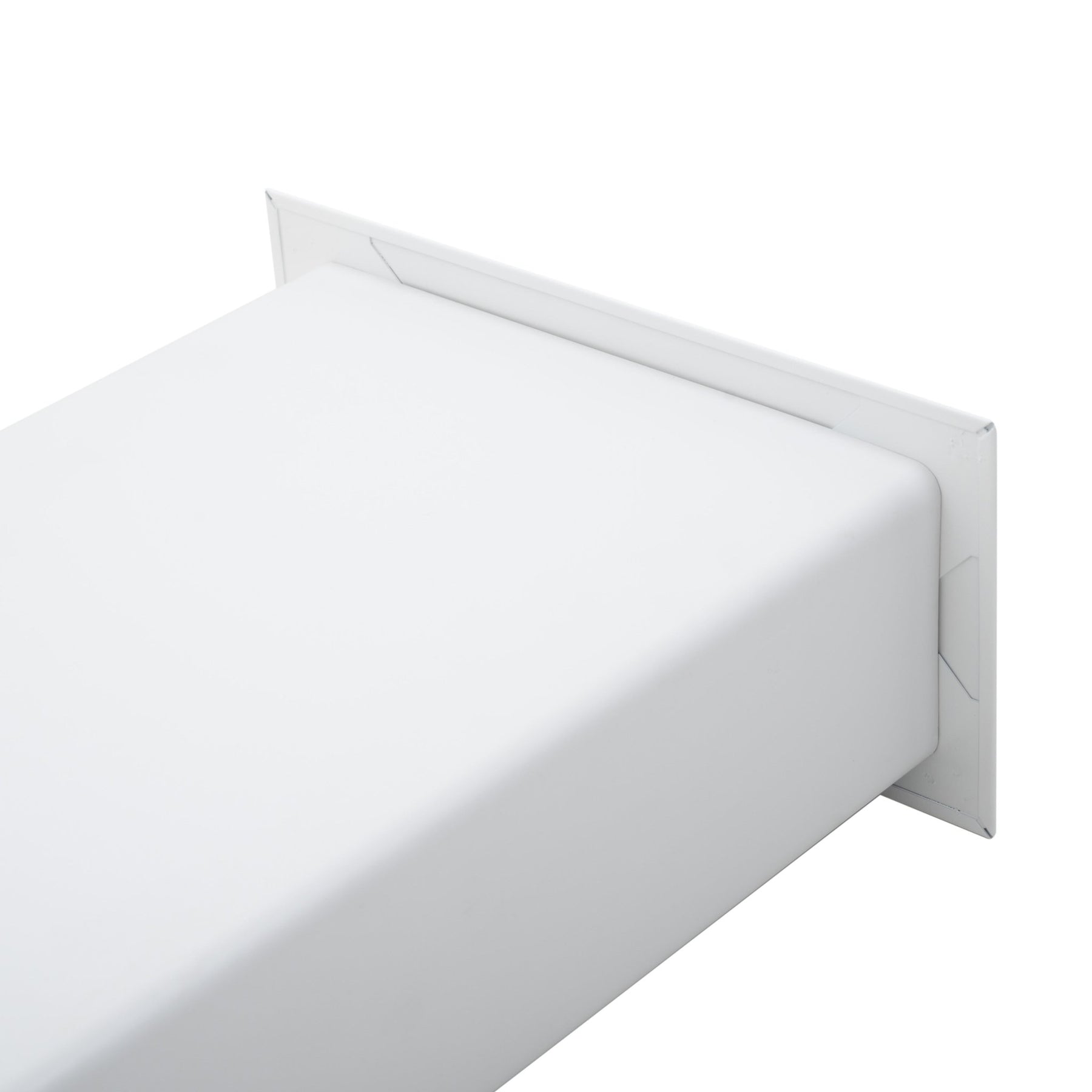

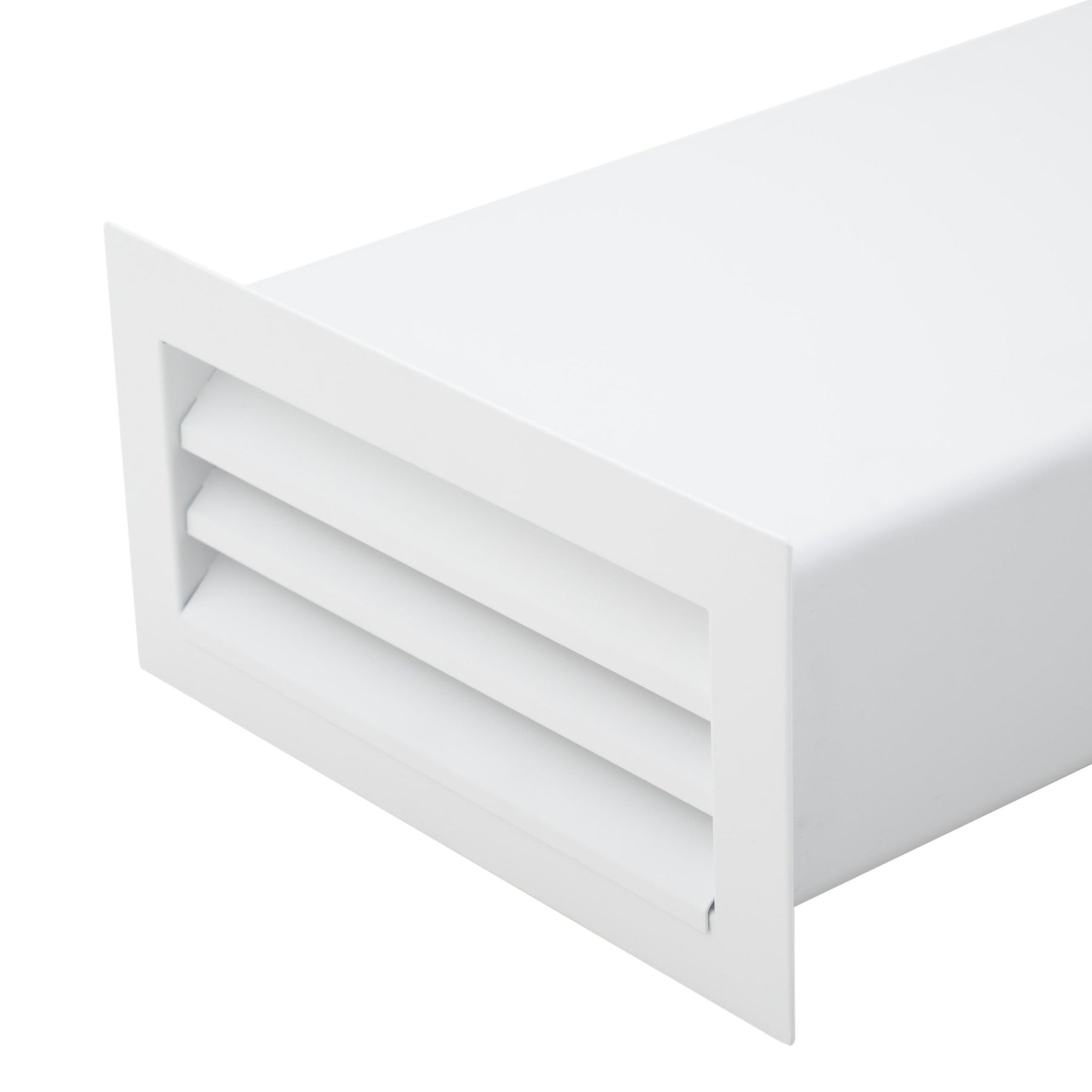

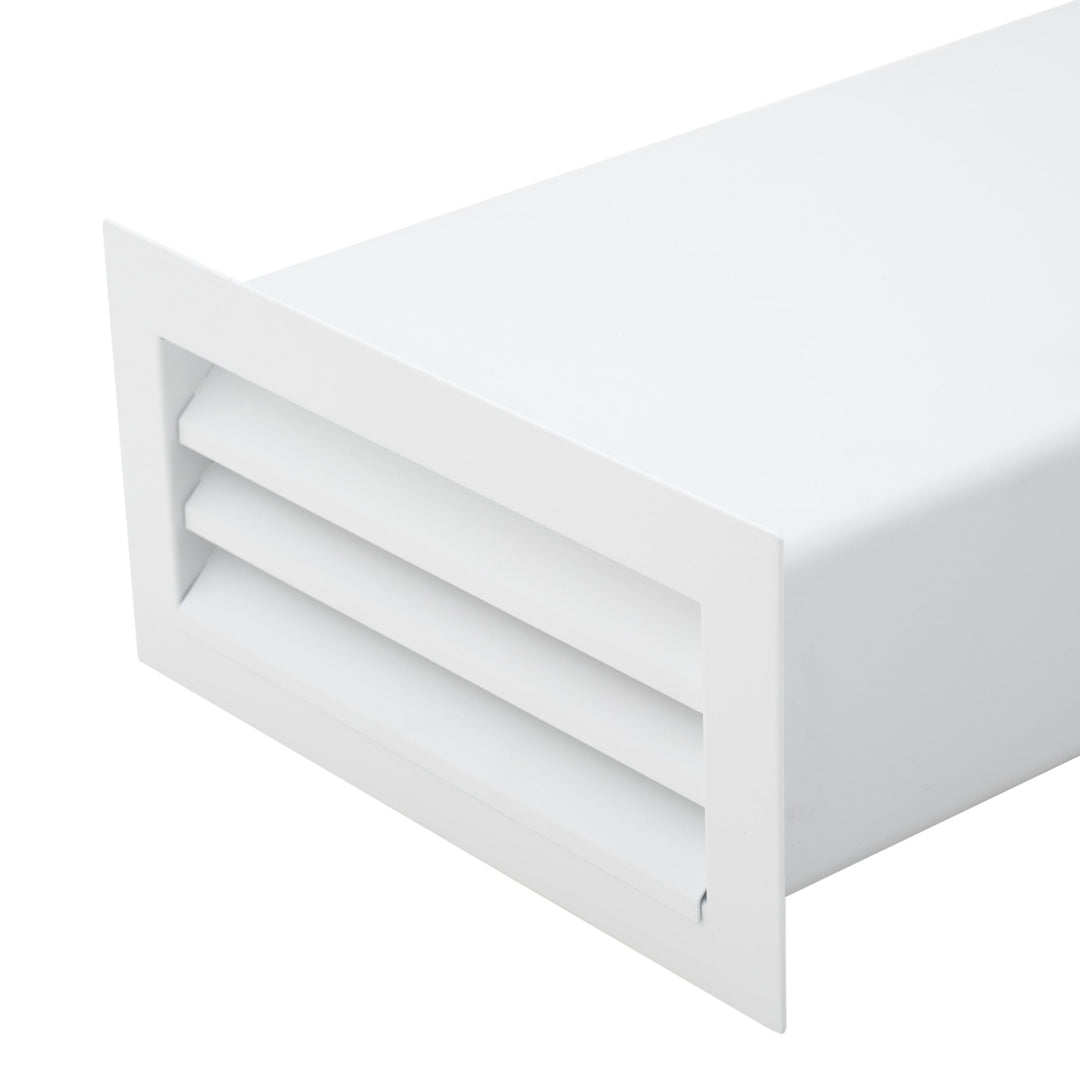

The 220mm × 90mm plinth grille is the correct outlet vent for flat channel ducting systems — most commonly used with Arcus venting induction hobs in recirculation mode, where the extracted air is returned through charcoal filters and discharged through a plinth grille at the front of the base unit. It is also suitable as a wall vent for any installation using 220mm × 90mm flat rectangular ducting.
Fitting

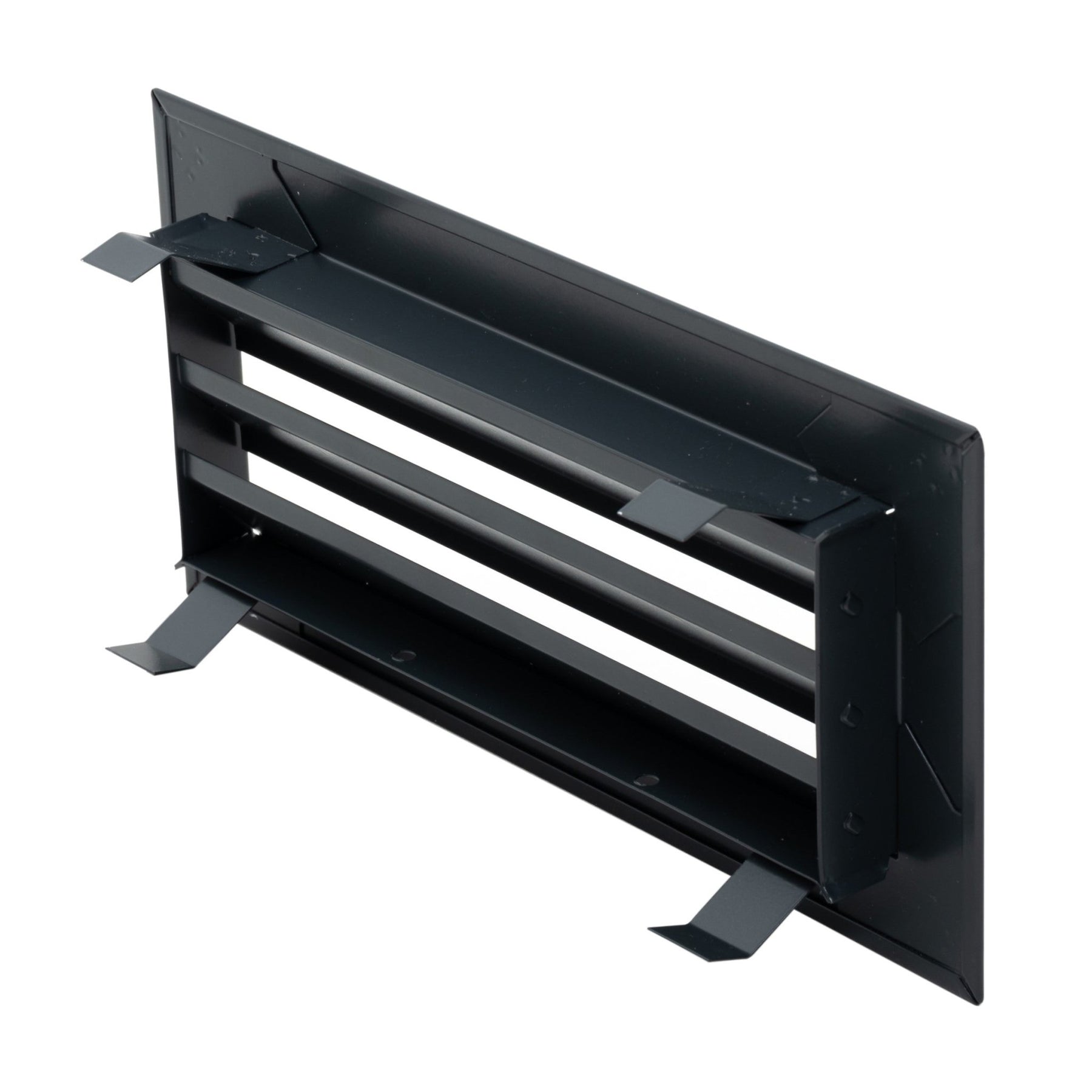

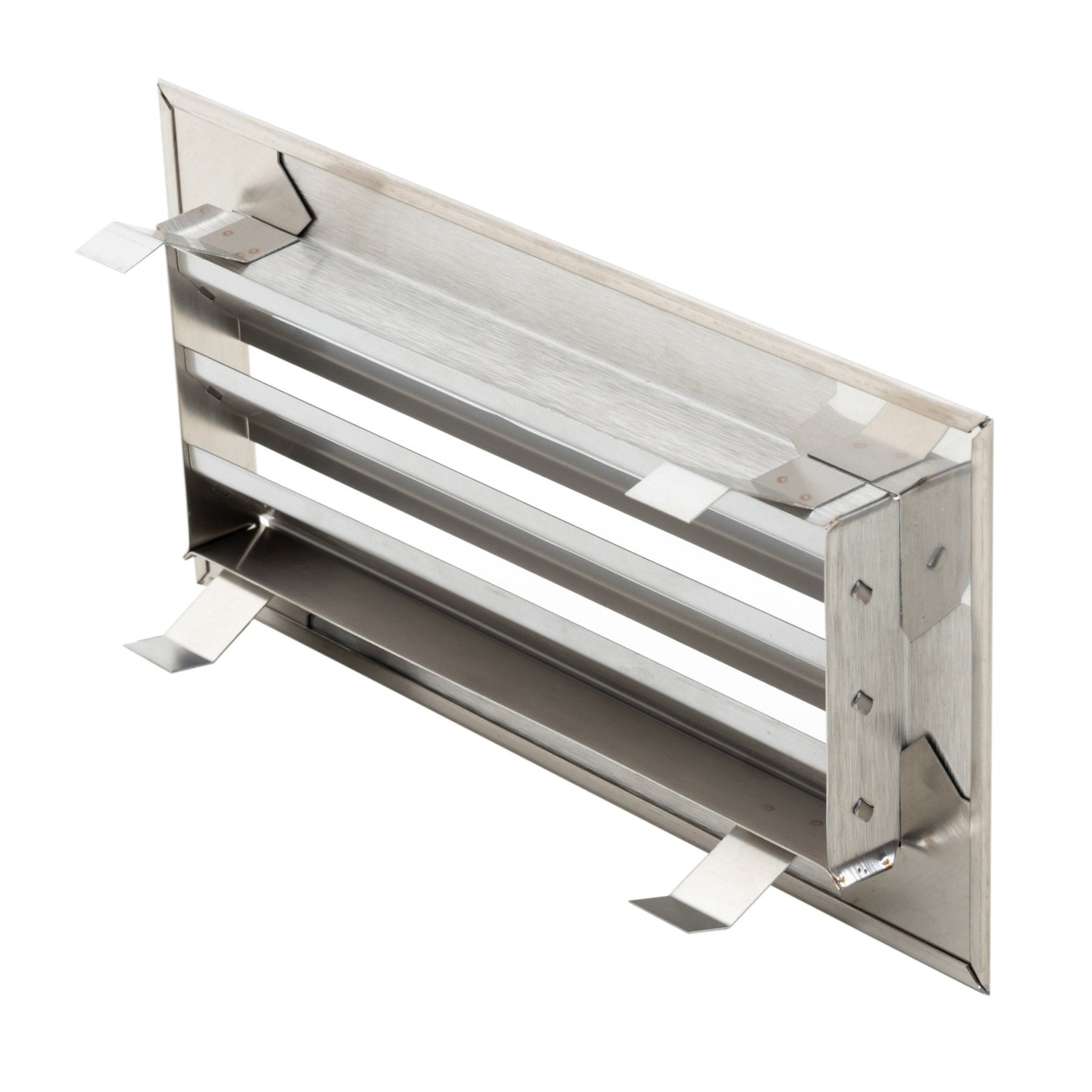

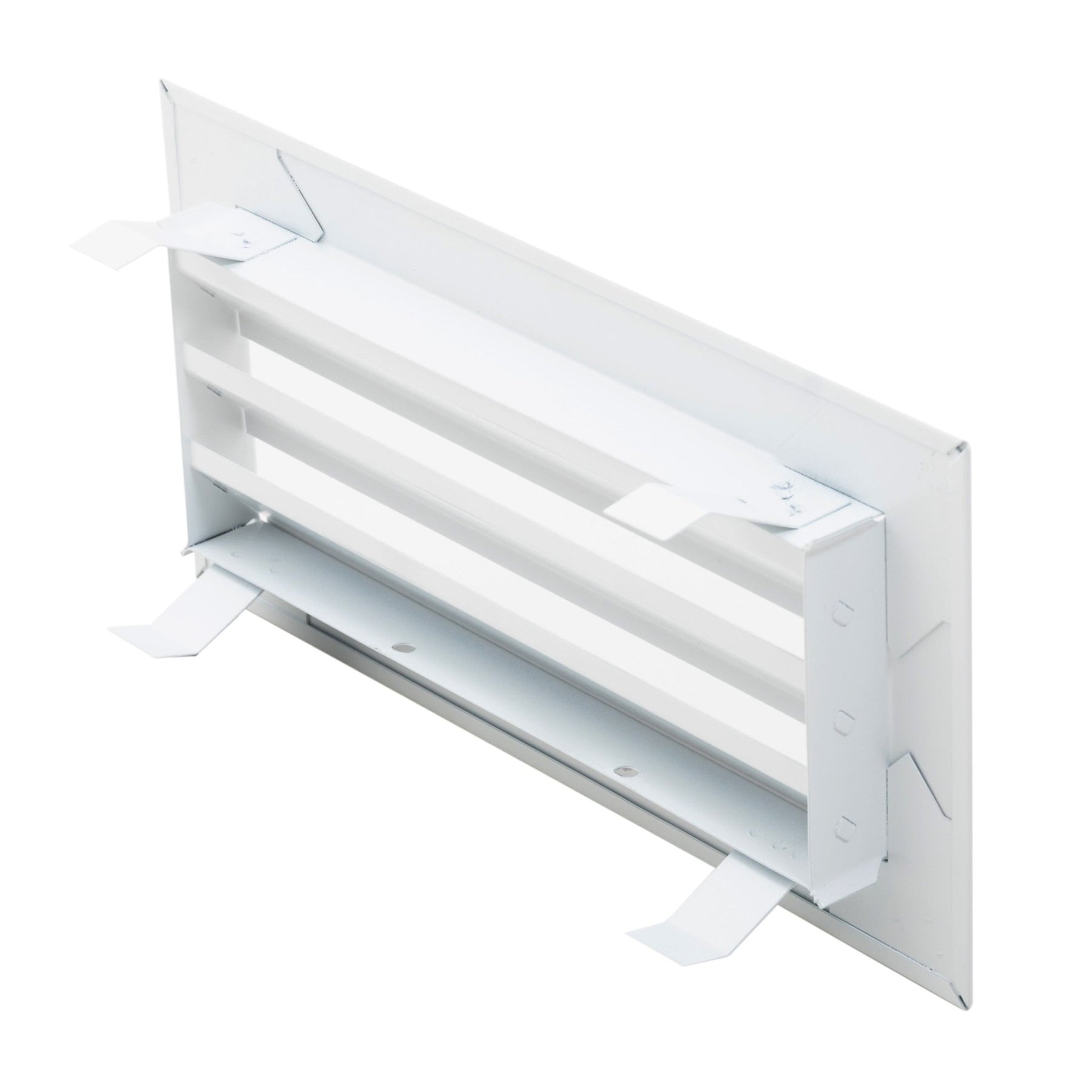

The push-clip system requires no screws and no drilling — the grille clips directly into the duct opening. The low-profile design sits flush against the plinth or wall surface for a clean, considered finish that suits both modern kitchen cabinetry and exterior wall installations.
Construction and Finish

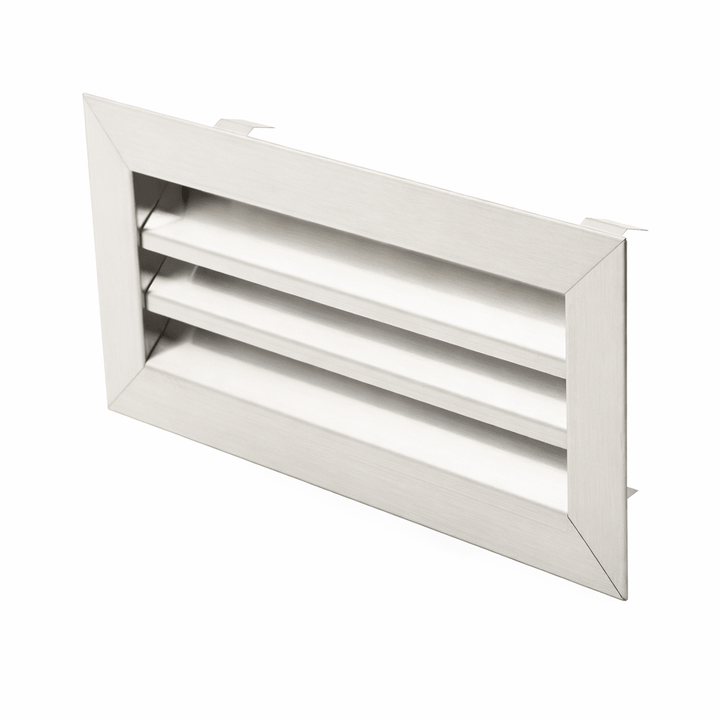

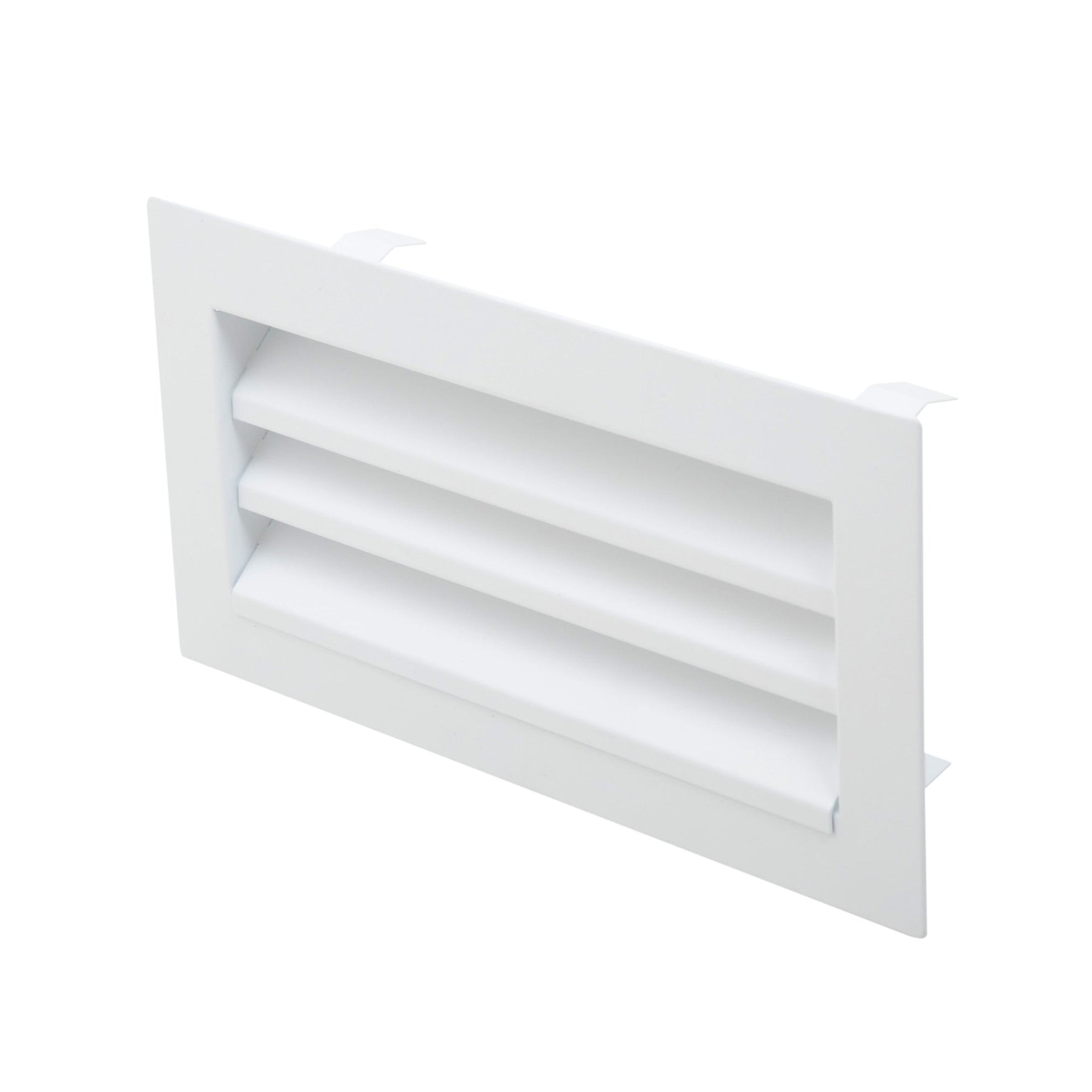

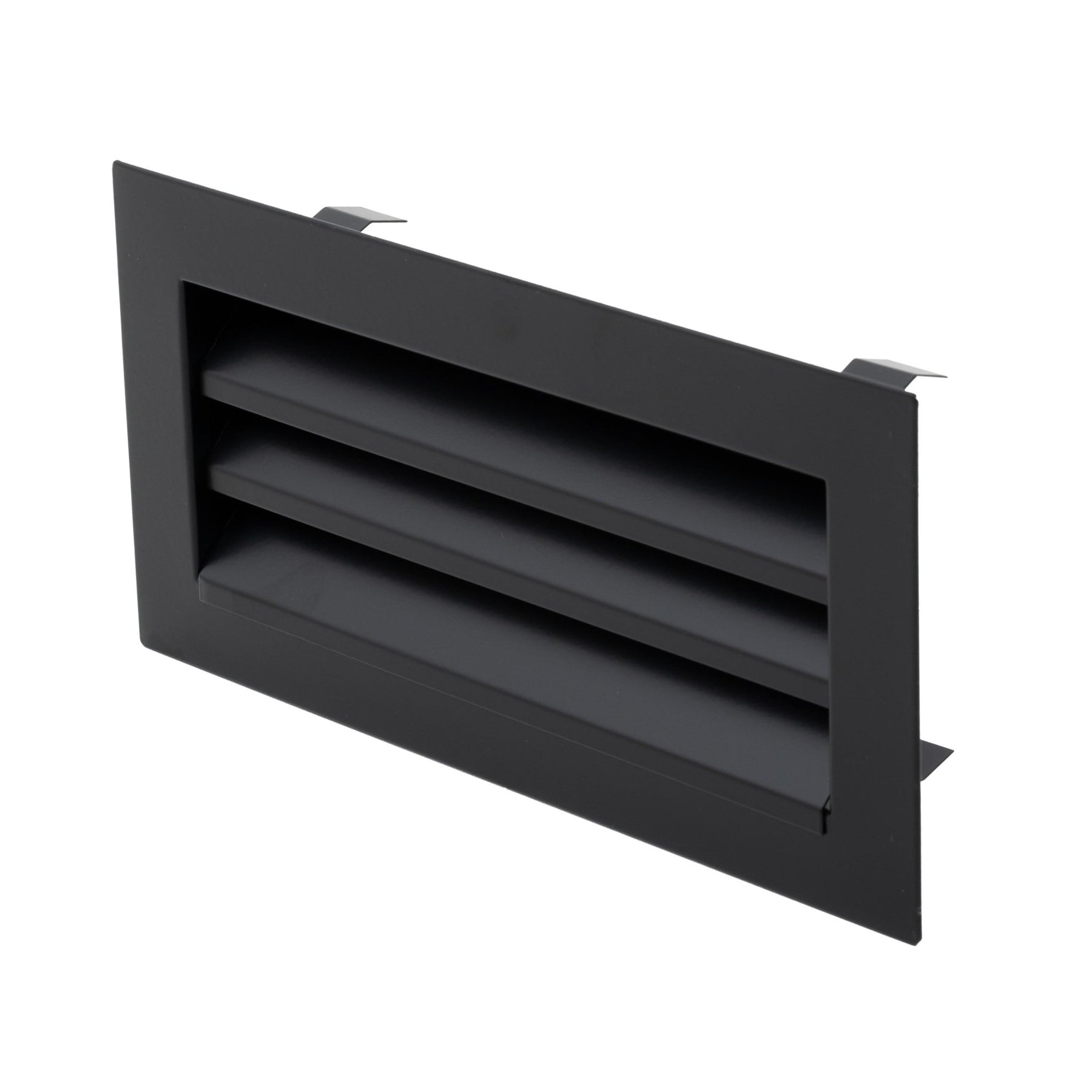

Handmade from 304 grade stainless steel or matt painted steel finish — rust-proof, corrosion-resistant, and durable for both internal and external use. Available in multiple colours to match kitchen cabinetry plinths or exterior wall finishes.
Applications
Suitable for kitchen and bathroom exhaust systems, Arcus venting hob recirculation discharge, HVAC and air circulation systems, and utility room ventilation in domestic and commercial settings.
Ducting Size Guide
Selecting the correct ducting diameter for your motor output ensures maximum extraction performance:
- Below 450m³/hr → 100mm (4") ducting
- 450–750m³/hr → 125mm (5") or 150mm (6") ducting
- 750–2,000m³/hr → 150mm (6") or 200mm (8") ducting
